LT PANEL TESTING

LT Panel Testing Services

LT (Low Voltage) panels comprise the foundation of a smart power infrastructure and can be used to shelter your switch-gear system along with your circuit breakers, protective relays, and busbars. With age-or more accurately, exposure to external elements, thermal challenges, switching-in shocks and other external environmental disruptions-low- voltage panelboards can lose their structural and physical stability along with insulation. Our LT Panel Testing Services help in the safe and dependable functioning of your switch-boards in relation with the defined electrical ratings and standards.

Karytron’s comprehensive LT panel Testing services help you in determining any concealed electrical faults, in checking up the capability of insulation in relation to electrical energy, and in checking control and protective schemes.

Regular Low Voltage Panel testing includes identifying faulty terminations in connections, checking breaker clearing times, and in controlling major electrical incidents. An Leading LT panel Testing Organization in Asia, Karytron performs all sorts of Lt panel Inspections and diagnostic Services at fabricating devices, all of the factories and also business complexes, in addition to with the critical business centers. These Low-Voltage Panel Testing services support an extensive preventative maintenance program as well as operational reliability by minimizing down time and also increasing safety and efficiency.

LT Panel Testing Services We Offer

Karytron offers a full spectrum of diagnostic tests and service routines to a wide range of Distribution Boards, Switchgear and Protection Controls.

Visual & Mechanical Inspection

Perform standardized tests on nine key parameters of: Overall Panel Structure, Panel Structure alignment, Panel structure general hardware tightness, Panel structure support structure tightness, Panel structure earthing, Panel structure phase barriers, Panel structure venting clearances, Panel structure door interlocks, and Panel structure enclosure seal.

Thermal & Environmental Inspection

Perform standardized tests on nine key parameters: Hotspot Evidence, Moisture Evidence, and Corrosion Evidence on various parameters for panel assemblies, cable termination locations, busbar connections, breaker compartments and associated equipment.

Circuit Breaker Servicing

Comprehensive eight-parameter: Visual check, Hotspot evidence assessment, Moisture analysis and Corrosion assessment performed on: Air Circuit Breakers (ACB’s), Molded Case Circuit Breakers (MCCB’s), and breaker racking mechanism.

Insulation Resistance (IR) Testing

A high potential DC insulation integrity assessment applied between phases as well as phases to earth, to identify areas of insulation breakdown.

High Voltage / Hi-Pot Testing

Application of a dielectric withstand voltage stress test applied to: busbar systems, insulating supports, switchgear equipment, and more.

Breaker Contact Resistance Testing

A micro-ohmmeter measure is carried out across the breaker’s main contacts to assess how well they are making under full current conditions.

Breaker Timing Analysis

Accurate measurement and documentation of closing and tripping response of breakers in milliseconds to confirm mechanical response for circuit breaker event diagnostics.

Manual & Electrical Breaker Operation Test

Full trip/close electrical and manual functionality checks across all breaker trip coils and associated control circuits.

Protection Relay Testing

Secondary injection method is utilized across a range of Primary, Secondary, and Auxiliary protection relays including: protection trip curves, time delays and pickup characteristics to be verified.

Current Transformer (CT) Testing

Primary injection method is utilized across current transformers (CT) to confirm trip and metering circuits and investigate breaker and busbar circuit parameters.

Trip Release Testing

Secondary injection method is implemented on all electronic and micro-processor based trip releases to confirm overcurrent, short circuit, and earth fault time/current characteristics and set points.

Continuity & Earth Continuity Testing

A low resistance measure is applied to ensure effective contact continuity between a frame and structural metalwork and protective earthing conductors.

Why is LT Panel Testing Important?

Routine Periodic Electrical LT Panel Testing is imperative for maintaining all primary Distribution Boards, Motor Control Centers (MCC) and Power Control Centers (PCC). Left unattended, unforeseen faults such as internal thermal hot spots, oxidized contacts or failed insulation within these panels are capable of causing a blackout or arc flash incident. When comprehensive LT Electrical Panel Testing is conducted systematically and at planned intervals, we achieve some of the following benefits:Enhances electrical safety.

Enables tracking and arcing issues, as well as grounding/earthing faults, before they create hazards.

LocatesLoose & Failing Contacts. Discovers high-resistivity joint, overheating connections and corroded bus bars to mitigate runaway thermal effect. Finds Breakdown of Insulation. Un Covers presence of water or dirt and failing insulation for early detection.

Ensures Protection Settings Correctness.

Vests confidence that tripping & protective devices & circuit breakers shall execute the intended interruption of fault currents. LimitsEquipment Downtime. Significantly decreases the likelihood of emergency shutdown by highlighting minor faults during a scheduled shutdown/maintenance routine.

Builds Future Maintenance. Provides baseline benchmarkable & trend-able maintenance data to initiate our most appropriate preventative and predictive maintenance plans.

LT Panel Testing Process

In order to assure clean execution with reliable diagnosis, the Karytron testing sequence is carried out in a methodical, step-by-step manner:

Site Initial Visual: A walk-through visit to discuss operational logged information, check Single line Diagrams (SLD’s) and site safety status, and to access the switch gear for testing.

Visual and Mechanical: Detailed inspection of panels and breakers for condition of mounting, finish, presence of hot spots, surface cleanliness, moisture and surface corrosion in all specified regions. E

lectrical Connectivity Evaluation: Physical checking and verification of torque of Bus bar connections, Cable terminations, Neutral Links and Protective ground bonds.

Dielectric Strength Testing (Insulation Resistance Test): Measurements to find phase to phase and phase to ground dielectric strength of insulating parts.

Breaker & Protection Tests: Detailed inspection of contact resistance values of breaker poles, inspection of breaker trip response times,SECONDARY INJECTION of protection relays, and PRIMARY INJECTION of CT network is carried out.

Functional Tests: Overall end to end functional test of all control circuit, manual and electrical trip-close functions, interlocks and indications.

Conclusion: The collected field data from the tests are assessed by Engineers to check the equipment status with reference to the manufacturer’s recommendations and relevant Indian National codes.

Test Report: Providing a detailed written report indicating the field data collected from the tests and condition assessment of the equipment

Applications of LT Panel Testing

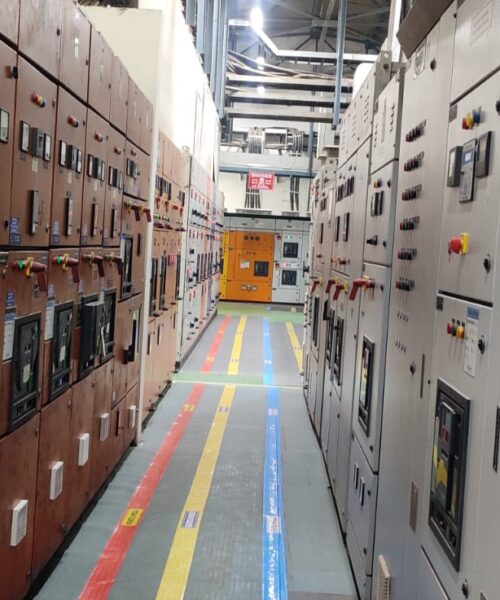

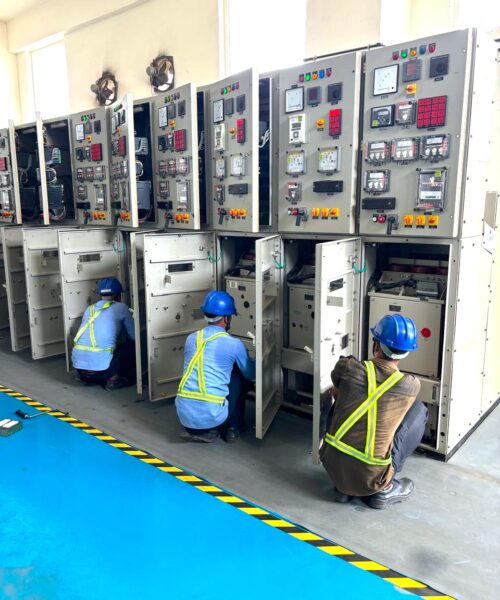

Karytron also conducts On-Site LT Panel Testing at sites catering to a wide spectrum of commercial & industrial categories.

Manufacturing Facilities

Automotive, Steel, Assembly & Heavy Machine Industries, Chemical processing units, etc.

Industrial Facilities

Processing, heavy engineering units, continuous plants.

Commercial Buildings

Offices in high-rise structures, administrative centers, business parks, etc.

Hospitals & Healthcare Centers

Continuous operation entities requiring seamless compliance in powered infrastructure.

Hotels & Hospitality

Large-scale luxury/holiday resort structures and commercial establishments.

Data Centers

Core mission-critical power solutions where absolute protection coordination & zero power downtime are non-negotiable.

Shopping Malls & Retail Outlets

High-volume, high-density, high-footfall public retail distribution chains.

Warehouses & Logistics Hubs

Mega storage and distribution centers, refrigerated facilities.

Educational Institutions

Universities, vast campuses, research facilities and laboratories.

Infrastructure

Mass Rapid Transit Systems (MRTS), Airport operations, water treatment plants and several public service undertakings.

Standards & Safety Requirements

As engineers, you understand there is more to equipment than looks good in the shop.
That’s why each of our tests, calibration practices, and inspections strictly follow
Indian Standards (IS) and International safety regulations for electrical switchgears:

IS/IEC 61439 (Parts 1 & 2)

Low-voltage switchgear and controlgear assemblies – general rules and power
switchgear/controlgear assemblies.

IS 13947 / IEC 60947

Low-voltage switchgear and controlgear specifications for circuit breakers,
switches, disconnectors, and control units.

IS 2705

Specifications for Current Transformers (CTs) outlining core parameters for
measuring & protective purposes.

IS 3043

Code of Practice for Earthing and protective ground path continuity.

IS 2026 / IS 8623

Guidance and recommendations for low-voltage power distribution assemblies
and controlgear panels.

Indian Electricity Rules (CEA Safety Regulations)

Legal safety mandates regarding the protection of electrical installations
covering Insulation Health, Protective Earthing and Routine Testing.

Why Choose Karytron for LT Panel Testing?

As a Reliable LT Panel Testing Company: Karytron brings Accurate Field Diagnostics, Experienced Engineering Capabilities and Safety Oriented Field Execution to you. Working with us on your LT Switchgear Testing yields various functional benefits: Skilled Testing Engineers-Technically trained & proficient in conducting sophisticated Electrical LT Panel testing, CT primary injection, & relay diagnosis. High-grade & calibrated Equipment-Deployment of a precise Secondary/Primary injection kits, micro-ohmmeters and high potential testing equipment.

Objectively obtained readings- Systematic assessment over a series of multi-parameter checks across various attributes-which brings out objectivity and real-time functionality on the ground.

Comprehensive Test Reports-Thoroughly detailed document includes both pre and post test results, relay timing curve traces, assessment based upon whether it passes or fails and recommended course of action for critical points. Safe test conduction procedures-Comprehensive and strict following of the Lock out Tag out (LOTO) safety principles, use of PPE standards and Indian standards for testing at electrical installations-safeguarding all aspects of the system. On- site service for the entire of India-Quick and reliable dispatch on your site throughout India, at your industrial and commercial site with minimal delay. Functional Recommendations & Actionable Analysis-Detailed conclusions and a clear rationale provided, to aid in making a logical LT Panel maintenance strategy and predictive asset life cycle management.

Frequently Asked Questions

What is LT Panel Testing?

LT Panel Testing Services involve a series of physical, electrical, and functional diagnostic tests performed on low-tension switchgear, circuit breakers, protective relays, busbars, and control circuits to verify their operational safety, performance, and compliance with standards.

Why is LT Panel Testing required?

Regular Low Tension Panel Testing is necessary to identify high-resistance electrical connections, detect insulation deterioration, verify breaker tripping times, and confirm protective relay settings. Periodic diagnostics prevent unexpected downtime, lower fire hazards, and protect operating personnel.

Which tests are performed on LT panels?

Comprehensive testing covers multi-parameter visual, thermal, moisture, and corrosion checks; insulation resistance (IR) tests; high voltage (Hi-Pot) tests; breaker contact resistance tests; breaker timing analysis; manual/electrical trip and close operations; primary injection CT testing; and secondary injection relay/release testing.

How often should an LT panel be tested?

It is recommended to conduct comprehensive Electrical LT Panel Testing annually or during planned preventive shutdown cycles. High-duty industrial switchgear or environments exposed to vibration, moisture, or heavy load cycling may require semi-annual inspection.

What is the difference between LT Panel Testing and HT Panel Testing?

LT Panel Testing covers switchgear rated up to 1000V AC (typically 415V/440V systems), focusing on low-voltage air circuit breakers, MCCBs, thermal-magnetic releases, and distribution busbars. HT Panel Testing applies to high-tension systems operating above 1kV (such as 11kV, 33kV), requiring higher dielectric withstand testing, specialized vacuum/SF6 breaker testing, and distinct safety clearances.

Can LT Panel Testing be performed at the customer's site?

Yes, Karytron delivers complete on-site LT Panel Testing in India. Our field team brings portable calibrated testing equipment, primary/secondary injection kits, and insulation meters directly to your facility during scheduled shutdown windows.

What is included in an LT Panel Testing report?

A Karytron test report includes ambient test conditions, multi-parameter visual inspection findings, measured insulation resistance values, contact resistance readings, primary injection CT response, secondary injection relay curves, breaker timing results, and actionable recommendations for LT Panel Maintenance.

How much does LT Panel Testing cost?

The cost of LT Panel Testing Services depends on the size of the distribution network, total number of breakers, complexity of protective relaying schemes, panel configuration, and site accessibility. Karytron provides tailored, competitive quotations based on your specific scope of work.
